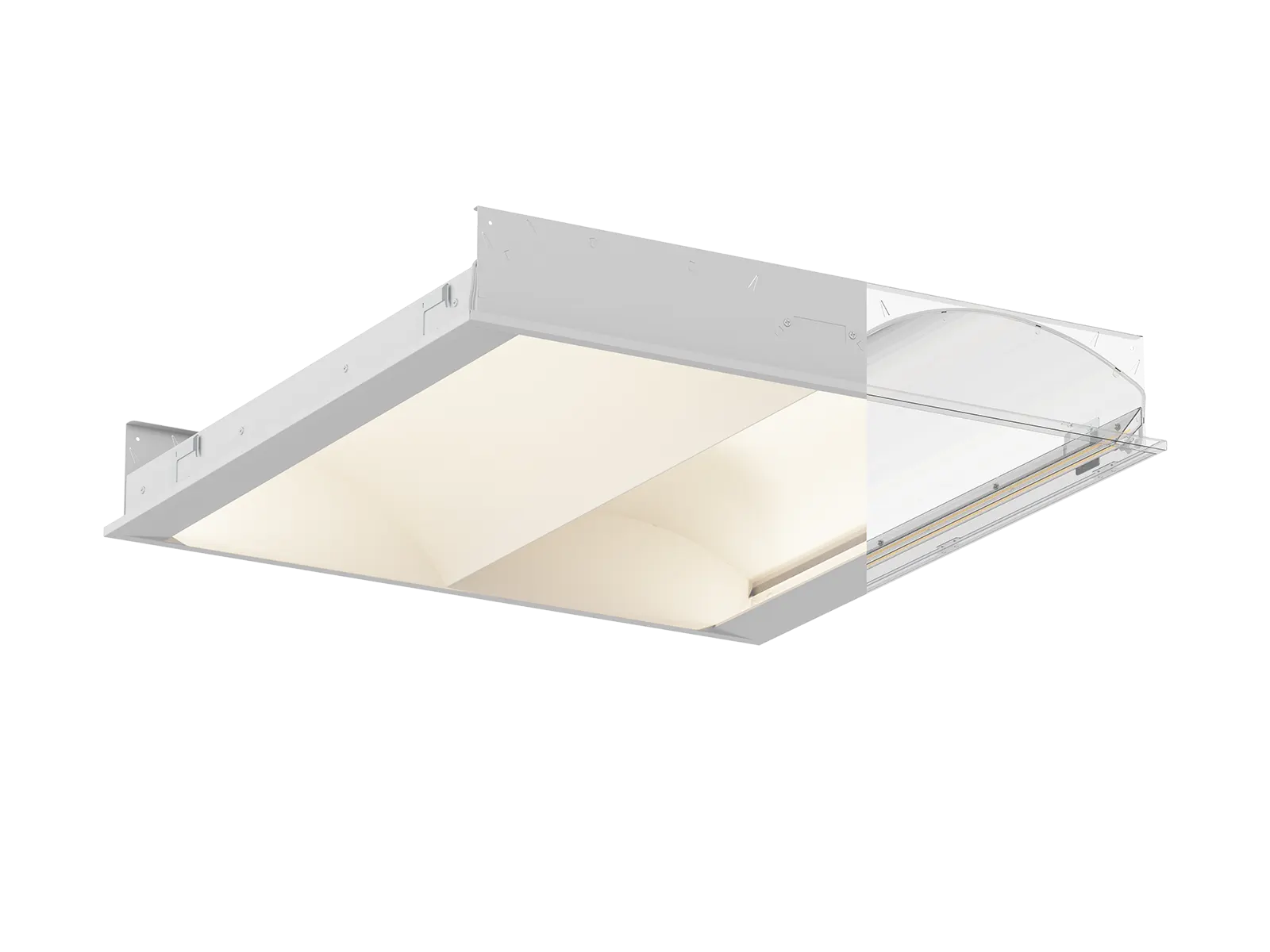

GL07 LED Troffer light
Product Introduction
Overview
Dimension(mm) | 595*595*92 |
| ||
Watt(W) | 30W | 36W |
| |
Rated Input Voltage(V) | AC220-240V |
|
| |
Input Voltage(V) | AC198-264V |
|
| |
Light Source | SMD |
|
| |
SDCM | <6 |
|
| |
CCT(K) | 1-CCT: 3000K/4000K/5000K/5700K || 3-CCT:3000K+ 4000K+5700K |
|
| |
CCT Selection DIP Switch | YES |
|
| |
Luminous Flux (lm) ±5% CRI80 | Non-DIM | 1-CCT | 3450-3600LM | 4200-4300LM |
DIM | 3400-3550LM | 4150-4250LM | ||
Non-DIM | 3-CCT | 3400-3700LM | 4150-4350LM | |
DIM | 3350-3650LM | 4100-4300LM | ||
CRI | CRI80 |
|
| |
Beam Angle (°) | 130° |
|
| |
LED Driver | built-out |
|
| |
Dimming Option | Triac/ DALI/ 0-10V/ |
|
| |
Electrical Class | Class Ⅱ |
|
| |
Ingress Protection (IP Rating) | IP20 |
|
| |
Impact Resistance (IK Rating) | IK08 |
|
| |
Product Finishing(Base) | White RAL 9016 |
|
| |
Materials of Optics | PMMA |
|
| |
Materials of Housing | SPCC(back plate) |
|
| |
Lifetime (hr) | 50000h |
|
| |
Glow wire test ( ) | 650°C |
|
| |
Operating Temp. ( ) | -10℃~45℃ |
|
| |
Storage Temp. ( ) | -20°C~50°C |
|
| |
Installation | Pendant / Recessed |
|
| |
